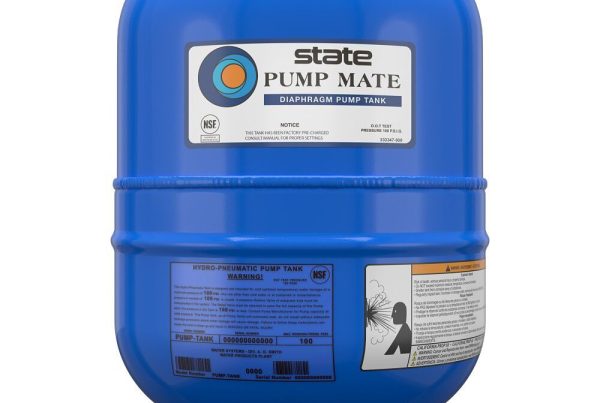

• Convenient air charge valve. 100 PSI working pressure
• Butyl diaphragm ensures permanent separation of air and water.
• Steel retaining ring “seals” diaphragm directly to tank shell.
• 2–coat polymer water–side lining, bonded to shell, proven protection
against rust.
• Rotating corrosion–resistant base assures stability. Rotates for easy
alignment to connection.
• Slotted and notched for proper airflow, reduced condensation.
• Drawn steel construction
• Diaphragm operation Corrosion resistant base Light weight
• Rotating Maximum working pressure 100 PSI Pre–Charged at 25 PSI
|
Model Number |
Volume (Gallons) | Connecting NPT Size | Dimensions in Inches | Weight (lbs.) | ||
| A- Overall Height | To Center of Water Inlet | B- Diameter | ||||
|

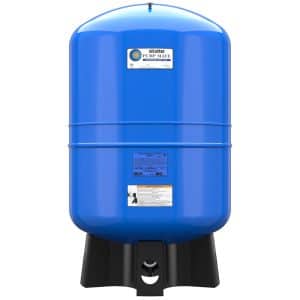

SDX Series Free Standing |
||||||
| SDX-14 | 14 | 1 (F) | 24-3/4 | 2-1/4 | 15-3/8 | 25 |
| SDX-20 | 20 | 1 (F) | 32-3/4 | 2-1/4 | 15-3/8 | 30 |
| SDX32 | 31 | 1 (F) | 45-1/2 | 2-1/4 | 15-3/8 | 40 |
| SDX-36S | 36 | 1-1/4 (F) | 32-5/8 | 2-1/4 | 20 | 45 |
| SDX-52 | 52 | 1-1/4 (F) | 38-5/8 | 2-1/4 | 23-3/8 | 77 |
| SDX-86 | 86 | 1-1/4 (F) | 59 | 2-1/4 | 23-3/8 | 105 |
| SDX-119 | 119.5 | 1-1/4 (F) | 61-1/4 | 2-1/4 | 26 | 160 |
|

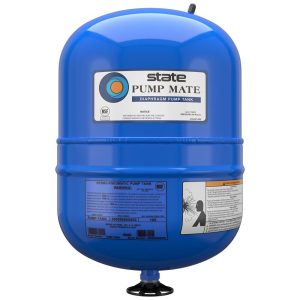

SDX Inline Series |
||||||
| SDX-2 | 2.0 | 3/4 (M) | 10-316/ | – | 8-1/4 | 5 |
| SDX-5 | 4.6 | 3/4 (M) | 14-3/4 | – | 11 | 9 |
| SDX-7 | 7.3 | 3/4 (M) | 21-1/6 | – | 11 | 12 |
|
SDXH Series Horizontal |
||||||
| SDXH-7 | 7.3 | 3/4 (M) | 12-7/8 | 21-116/ | 11 | 16 |
| SDXH-14 | 14.0 | 1 (M) | 17-3/8 | 21-3/4 | 15-3/8 | 25-1/2 |
| SDXH-20 | 20.0 | 1 (M) | 17-3/8 | 27-1/8 | 15-3/8 | 30 |
